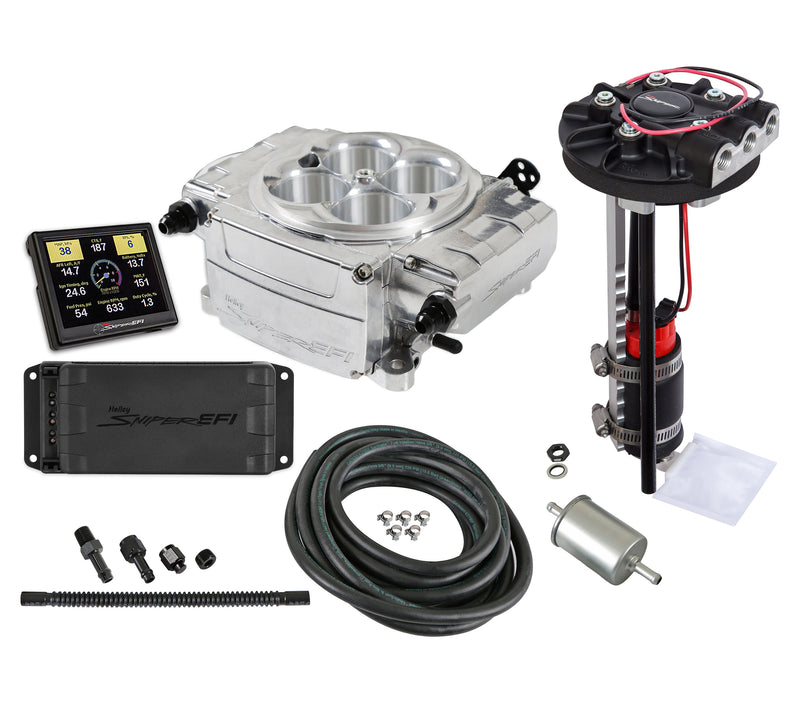

Holley 550-510-3PD Sniper 2 EFI Returnless Style Drop-In Module - With PDM - 3.5 in. Handheld - POLISHED
Description
Returnless Style Drop-In Module - With PDM - 3.5 in. Handheld
Features:
- Main Features
- All new design – the #1 EFI Conversion just got better!
- Only four wiring connections required: Battery+, Battery-, Switched Ignition, and RPM
- Calibration wizard only requires that you answer a few simple questions about your engine to create a base map and begin self-tuning – No laptop required
- Supports up to 650hp naturally aspirated or 575hp on boost with four 100 lb/hr injectors
- (NEW) Next generation ECU features improved RF noise and interference resistance (stands up to old car wiring, noisy alternators, faulty plug wires)
- (NEW) Redesigned throttle shaft and plate geometry for a smoother throttle feel
- Sniper 2 is Part of the Sniper EFI Complete Ecosystem
- Sniper 2 is compatible with the complete Sniper EFI Ecosystem that includes plug-n-play Hyperspark Ignition systems (coil, ignition box and distributor), fuel systems (fuel lines, fuel pump hangers), multiple displays and more
- (NEW) Main harness includes plug-and-play HyperSpark distributor support, for integrated timing control, making your ignition setup hassle free
- (NEW) Adaptors for other ignition types sold separately: 558-329 CD Box to Sniper 2, 558-330 MSD Pro Billet / Crank Trigger to Sniper 2
- (NEW) Wide Variety of tuning and gauge display interfaces: from a 3.5-inch full color LCD Handheld, 5-inch Digital Dash, or the Bluetooth dongle, which allows you to connect either an iOS or Android based cell phone to your Sniper 2
- (NEW) Optional Power Distribution Module (PDM) further simplifies wiring, especially when used in conjunction with an ignition system
- Available with fuel system kits: a complete fuel system consisting of: 20 ft. of 3/8 in. Vapor Guard Fuel Hose, Fuel Pump, fuel pressure regulator, filters, necessary hardware, and bulkhead fitting to return fuel into the tank
- Additional Features
- (NEW) Integrated transmission kick down provisions for GM TH350/400, 200-4R/700R4 and Ford C4/C6 applications
- (NEW) “Hidden Harness” wiring harnesses exits from the rear of throttle body for a clean appearance
- (NEW) Inputs and outputs consist of: 2x Ground Inputs, 2x Ground Outputs, 1x TPS output (0-5v), and 1x Tach Output
- (NEW) Redesigned injector connector for improved reliability
- (NEW) Onboard contactless magnetic TPS sensor ensures an accurate TPS reading
- (NEW) Next Generation mil-spec style M8 positive lock connector for CAN1 and CAN2 provides the latest in CAN bus technology for a simple yet robust connection
- (NEW) Cast-in fuel crossover from the primary to secondary fuel rail
- (NEW) Sniper 2 throttle bodies are serialized in house, which provides each unit a birth certificate for an improved customer service and warranty experience in the event of any unit needing to be inspected
- The included genuine Bosch LSU 4.9 wideband oxygen Sensor provides real-time fuel map learning
- Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation with stainless steel T-Bolt clamps and a stainless steel weldable oxygen sensor flange
- Patent Pending
Accelerometer Support | No |
---|---|
Boost Control | No |
Brand | Holley Sniper EFI |
CAN-BUS Support | Yes |
Category | Air and Fuel Delivery |
CFM | 800 |
Coast Guard Approved | No |
Coil Per Cylinder Ignition Support | No |
Datalogging Support | Yes |
Distributor Included | No |
Distributor Included? | No |
Dry Nitrous Control | No |
e85 Support | No |
EGT Support | No |
Emission Code | 3 |
Finish | Shiny |
Flange Style | 4150 |
Forced Induction HP@60PSI | 575 |
Forced Induction Support | Yes |
Fuel Filter Included | Yes |
Fuel Hose Included | Yes |
Fuel Injectors Included | Yes |
Fuel Pressure | 58.5 PSI |
Fuel Pressure Regulator Included | Yes |
Fuel Pump Flow Rating | 340 LPH |
Fuel Pump Included | Yes |
Fuel Pump Type | In-Tank |
Fuel System | Universal Returnless Drop In Module |
Grade Type | Performance |
Height | 3.28" |
Hyperspark Ignition Kit | No |
Ignition Timing Control | Yes |
Individual Cylinder Fuel Corrections | No |
Injector Size | 100 lb/hr @ 58.5 PSI |
Inlet / Outlet Size | 9/16-18 Female O-Ring (AN 6) |
Intake Manifold Included | No |
Knock Retard Support | No |
MAP Sensor | 2 Bar |
Max Horsepower Rating | 650 Naturally Aspirated |
Model | 4150 EFI Conversion Throttle Body |
Multi-Stage Nitrous Control | No |
Naturally Aspirated HP@60PSI | 650 |
Part Type | Fuel Injection Conversion Kit |
PDM | Yes |
Power Distribution Module | Yes |
Product Type | Sniper EFI |
Progressive Nitrous Control | No |
Self-Tuning | Yes |
Sub Category | Service Kits |
Throttle Position Sensor Included | Yes |
Traction Control Support | No |
Transmission | All |
User Interface | 3.5 in Handheld |
User-Tuneable | Yes |
Warranty | Two Year Standard, Extended Via Product Registration |
Wet Nitrous Control | No |
UPC | 090127864647 |
Part Number | 550-510-3PD |
