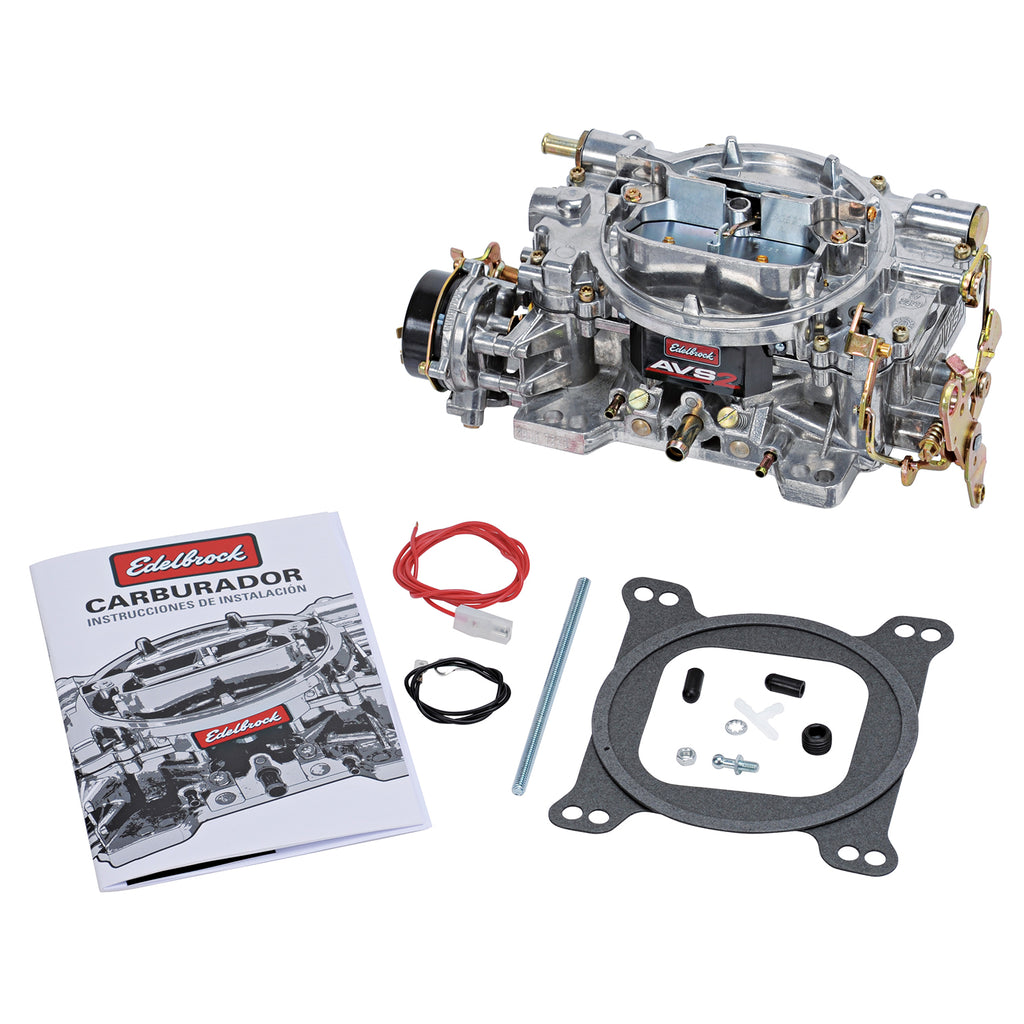

The Edelbrock #19069 Remanufactured AVS2 Series 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines.
| UPC |
085347190690 |
| Condition |
New |
| Series |
AVS2 |
| Metering Rod Size |
.070 x .037 in |
| Gasket Or Seal Included |
Yes |
| Barrel Quantity |
4 Barrel |
| Flange Type |
Square |
| Secondary Jet Diameter |
0.098 |
| Main Venturi Diameter |
1.19 |
| Body Height |
3.25 |
| Bore Diameter |
Primary Bore 1.44; Secondary Bore 1.75 |
| Spring Force |
5" Hg (Orange) |
| Availability Note |
Available to Order |
| Warranty |
12 Months |
| Emissions Code |
|
| Hazardous Materials Warning |
 WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Installation Notes |
- Edelbrock AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000. Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor.
|
| Choke Type |
Electric |
| Finish |
Satin |
| Marine Approved |
No |
| Material |
Aluminum |
| CFM Rating |
650 cfm |
| Primary Jet Diameter |
0.101 |
