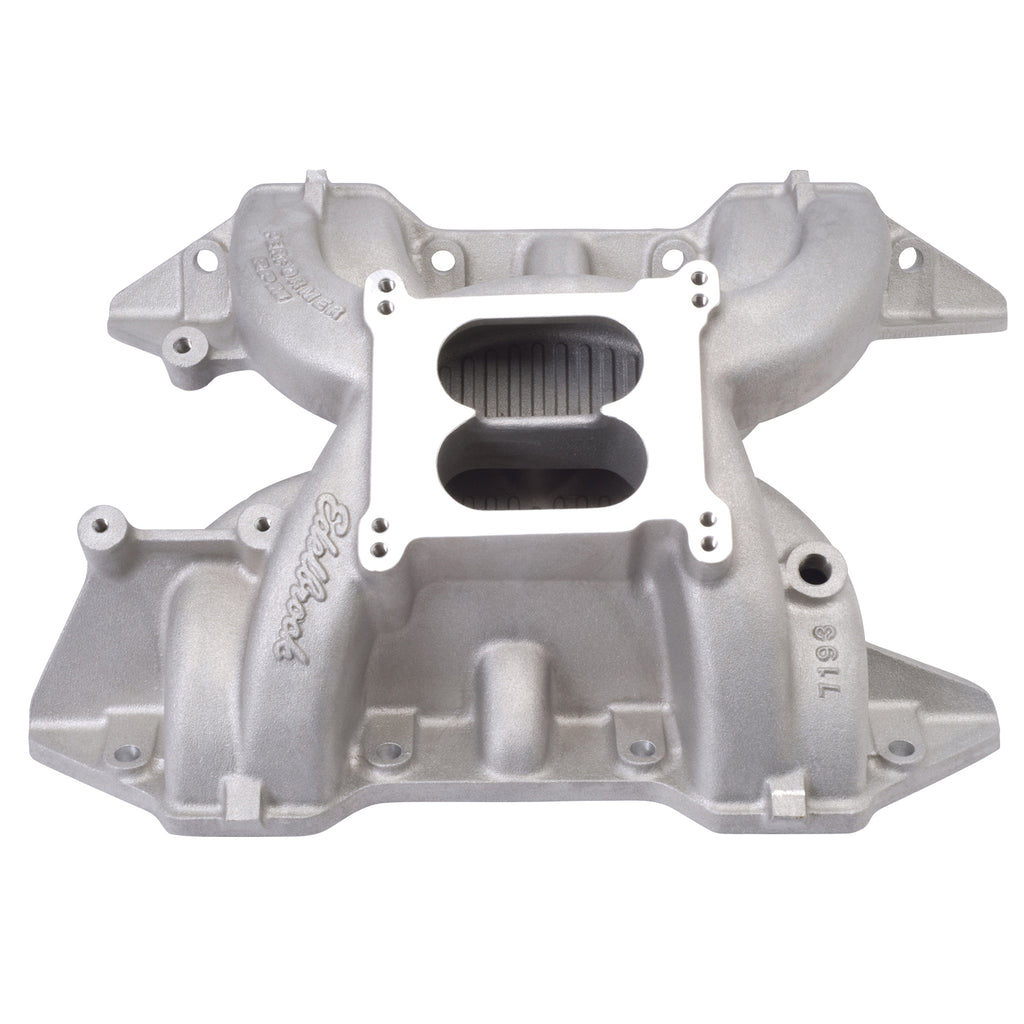

Performer RPM Big Block Chrysler RB Intake Manifold
Edelbrock part #7193 Performer RPM 440 intake manifold is designed for 413-426-440 c.i.d. Chrysler V8 applications. The dual-plane design results in excellent low-rpm torque and outstanding high-rpm hp. For high-performance street/strip applications.
| UPC |
085347071937 |
| Series |
Performer RPM |
| Material |
Aluminum |
| Finish |
Satin |
| Grade Type |
Performance |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chrysler |
| Availability Note |
Available to Order |
| Warranty |
12 Months |
| RPM Range |
1500-6500 RPM |
| Emissions Code |
|
| Hazardous Materials Warning |
 WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Installation Notes |
- Recommended intake gasket: Edelbrock #7225.; Manifold height: A-4.90", B-5.80"; Carb pad height: 5.35". Manifold is 1.7" taller than stock; Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1843 throttle/transmission lever kit.; Port exit dimensions: 1.13" x 2.09"; Manifold measure 8.75" across block; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
|
| Color |
Satin |
| Rear Maximum Height |
5.800 in |
| Single Or Dual Plane Type |
Dual |
