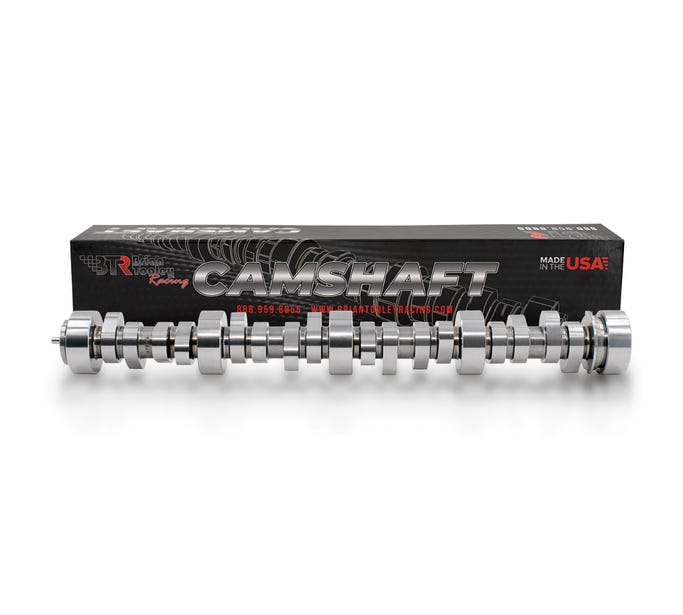

The new BTR V3 Truck Camshafts are the result of our most extensive truck cam development program ever, delivering more average torque and horsepower under the curve—perfect for trucks that need strong midrange performance & enhanced towing capability.
These cams use advanced valvetrain simulation and dynamic modeling tools, with Spintron development on both square and cathedral port heads to guarantee reliable, stable valvetrain performance across all possible platforms.
Next, we use engine and chassis dyno testing, using full-length truck single and dual exhaust systems and OEM-style intakes. High-speed exhaust and intake port sensors and in-cylinder combustion pressure measurements on the dyno give feedback on pressure wave dynamics in real time. We perform hundreds of dyno runs to fine-tune cam timing, valve overlap, and exhaust scavenging, maximizing torque and efficiency across the RPM range.
These “Truck” cams receive the same engineering rigor and combustion development as our race programs. No old catalog lobes! Our goal was a clean-sheet design to bring true motorsport-level engineering discipline to the street and towing world, using the same high-end analytical tools, Spintron lobe development techniques, and wave-based combustion tuning methodologies trusted in professional racing. Plus, you're getting a 100% USA-designed & made product!

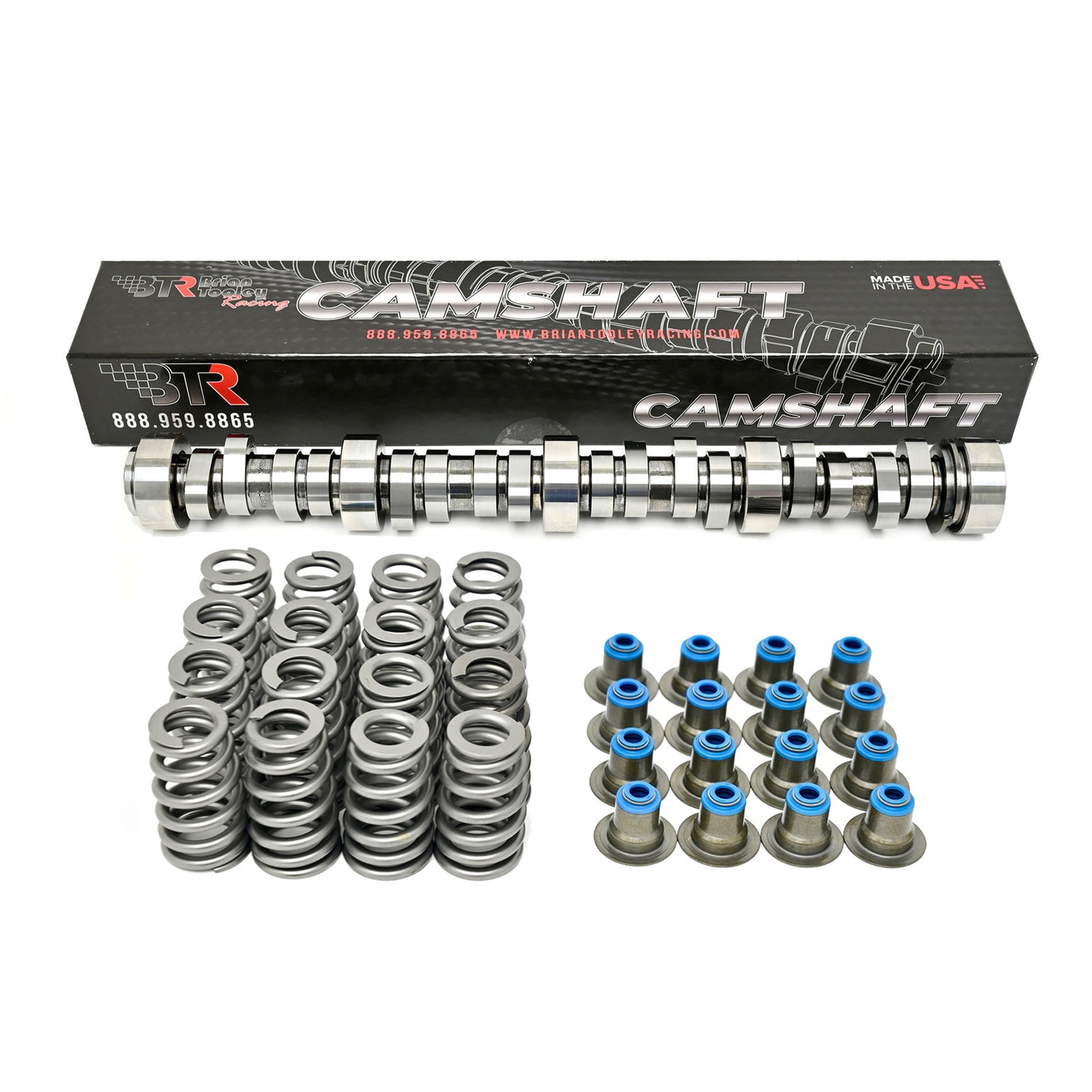

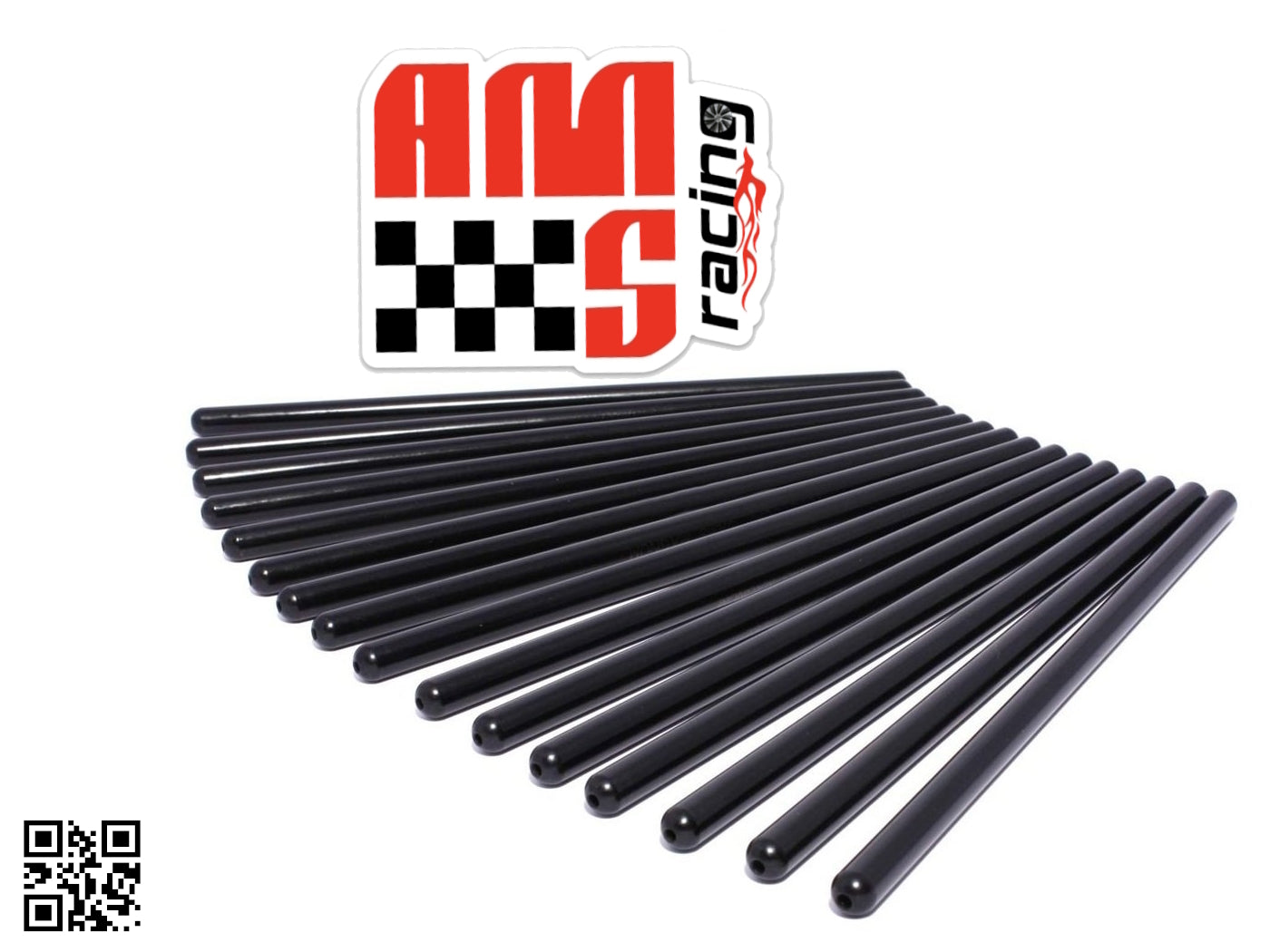

Kit Options Include: AMS Racing Hardened 1-Piece Chromoly Pushrods (7.400" Length) / Valve Stem Seals Included
Camshaft Information

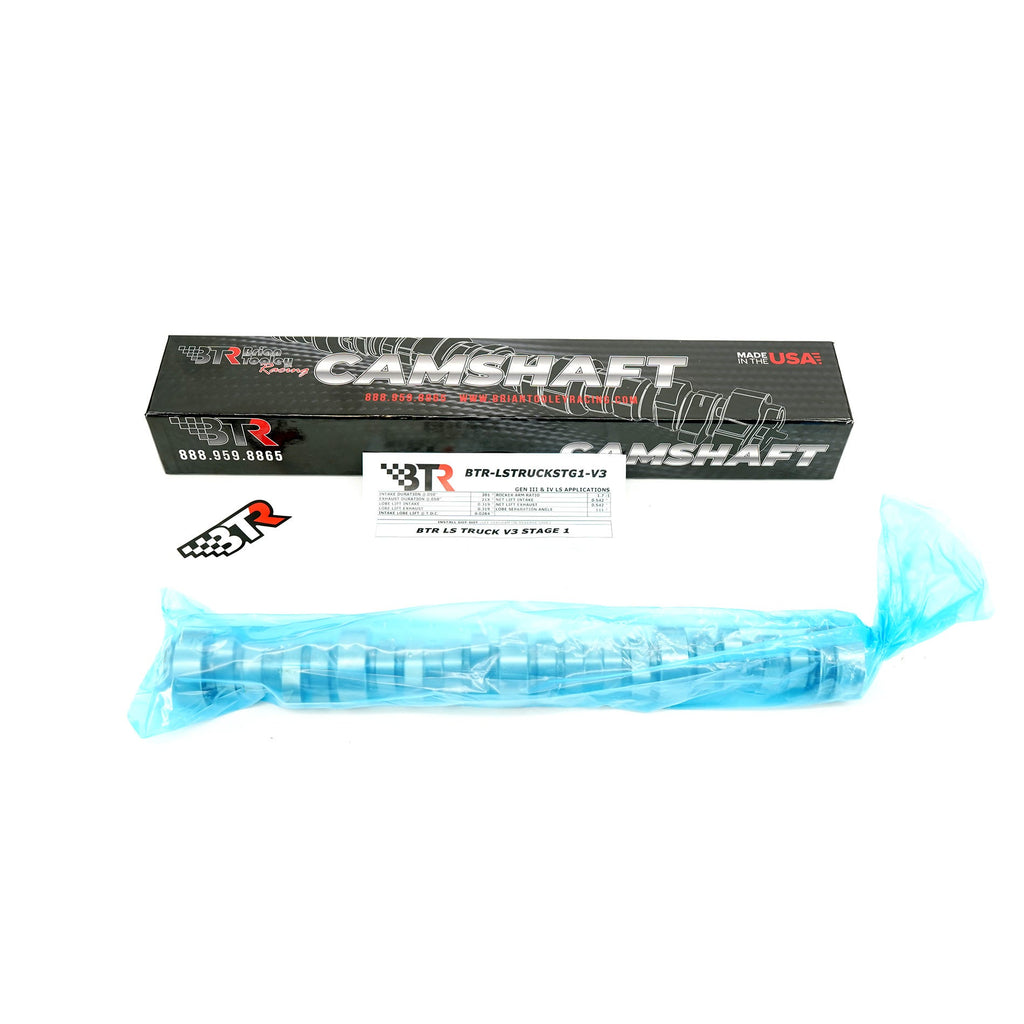

BTR SKU: BTR-LSTRUCKSTG1-V3
Camshaft Description: BTR LS TRUCK V3 STAGE 1
Engine Family: GEN III & IV LS Applications
Recommended Engine Size: 4.8-6.2L

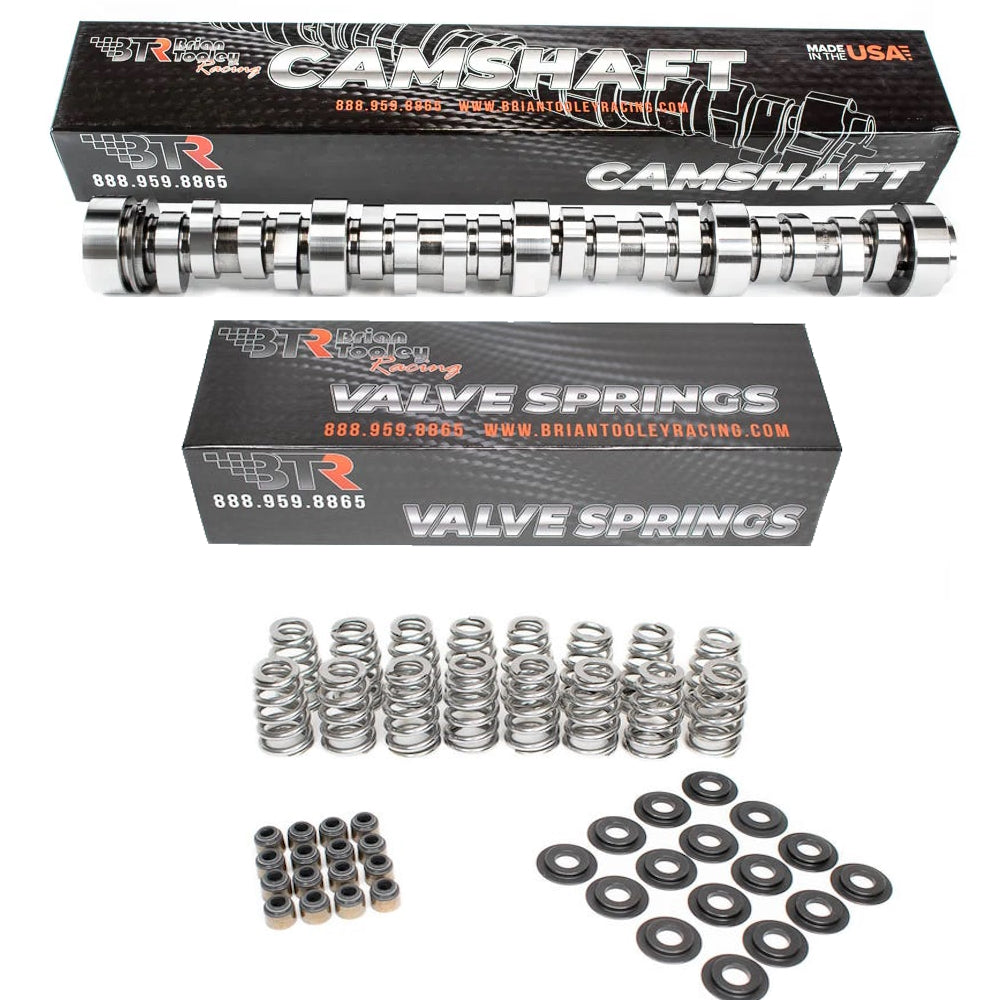

Recommended Valve Springs: BTR-SK018, SP011-16
NOTE: IF YOU HAVE A 6.0 OR 6.2 TRUCK ENGINE WITH SQUARE PORT HEADS, THE BTR-SK018 SPRING KIT IS RECOMMENDED.
Recommended Lifters/Lifter Trays: (LS7 Lifters) X12499225, (Trays) BTR95365-4
Suggested Pushrod Length: 7.400"
INTAKE DURATION @.050": 201°
EXHAUST DURATION @.050": 21X°
LOBE LIFT INTAKE: 0.319"
LOBE LIFT EXHAUST: 0.319"
INTAKE LOBE LIFT @ T.D.C.: 0.0284"
ROCKER ARM RATIO: 1.7:1
NET LIFT INTAKE: 0.542"
NET LIFT EXHAUST: 0.542"
LOBE SEPARATION ANGLE: 111°
EXPECTED IDLE VAC 750RPM: 32 (kpa)
RPM Operating Range: 1200-6000
Idle Quality: Minimal change in idle quality from stock
Chop Scale: 1/10
Expected Cam Swap Gains (P2P): 41+ Horsepower, 19+ lb/ft, extra
Torque Converter Characteristics: Works well with factory converters!
'Drivability': Stock Drivability with added Torque Everywhere
__________

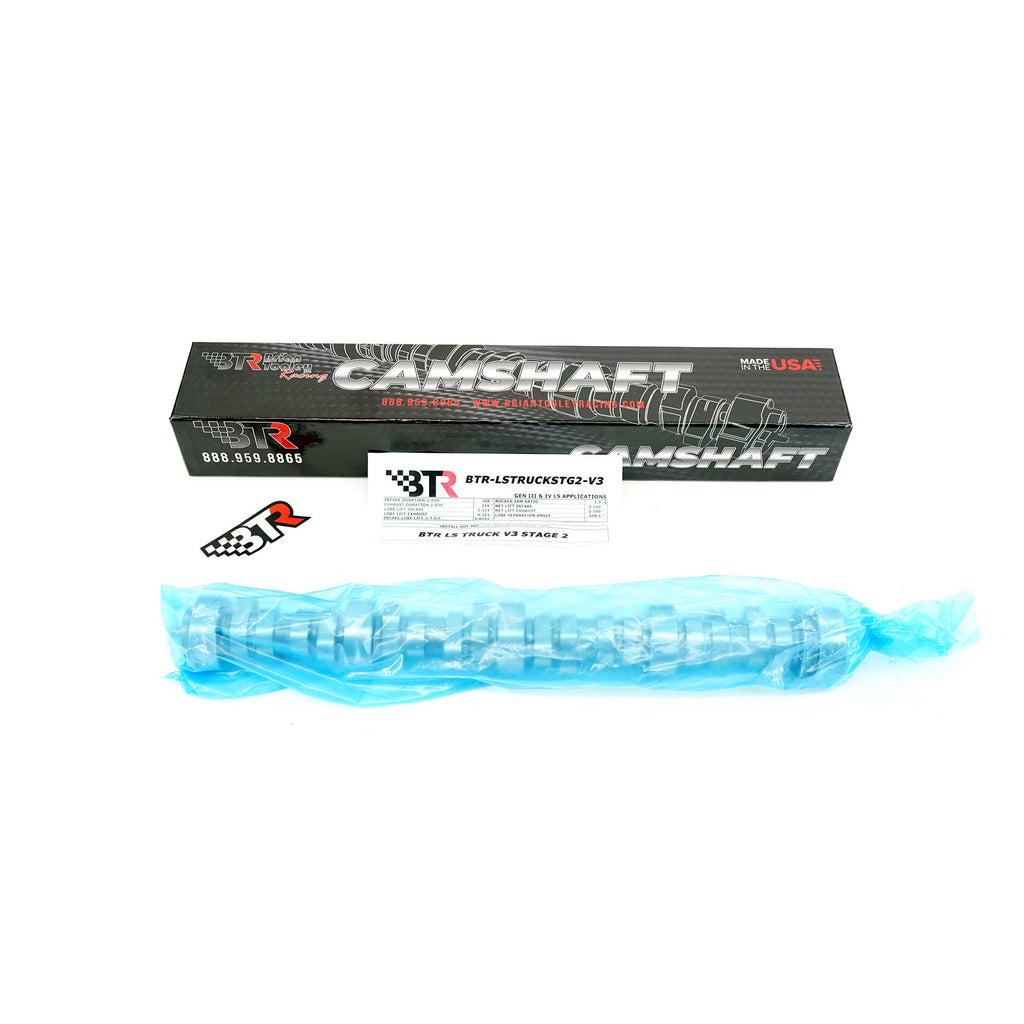

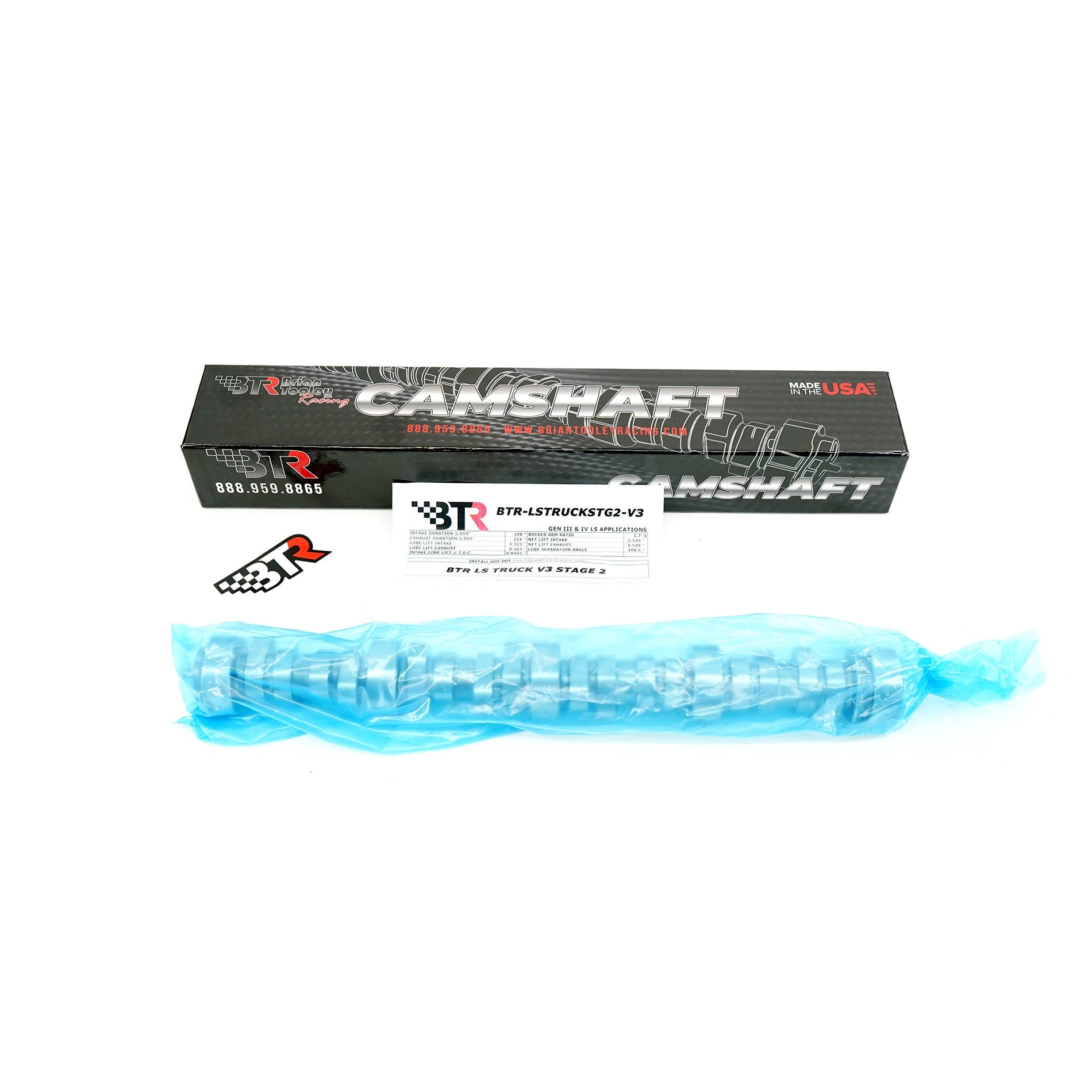

BTR SKU: BTR-LSTRUCKSTG2-V3
Camshaft Description: BTR LS TRUCK V3 STAGE 2
Engine Family: GEN III & IV LS Applications
Recommended Engine Size: 4.8-6.2L
Recommended Valve Springs: BTR-SK018, SP011-16*
NOTE: IF YOU HAVE A 6.0 OR 6.2 TRUCK ENGINE WITH SQUARE PORT HEADS, THE BTR-SK018 SPRING KIT IS RECOMMENDED.
Recommended Lifters/Lifter Trays: (LS7 Lifters) X12499225, (Trays) BTR95365-4
Suggested Pushrod Length: 7.400"
INTAKE DURATION @.050": 208°
EXHAUST DURATION @.050": 21X°
LOBE LIFT INTAKE: 0.323"
LOBE LIFT EXHAUST: 0.323"
INTAKE LOBE LIFT @ T.D.C.: 0.0444"
ROCKER ARM RATIO: 1.7:1
NET LIFT INTAKE: 0.549"
NET LIFT EXHAUST: 0.549"
LOBE SEPARATION ANGLE: 108.5°
EXPECTED IDLE VAC 750RPM: 42 (kpa)
RPM Operating Range: 1300-6250
Idle Quality: Nice Mild Cam Sound, enough to tell it’s NOT Stock
Chop Scale: 4/10
Expected Cam Swap Gains (P2P): 53HP 16FTLBS
Torque Converter Characteristics: Works With OE Torque Converters
'Drivability': Mild, Daily Driver Ready
__________

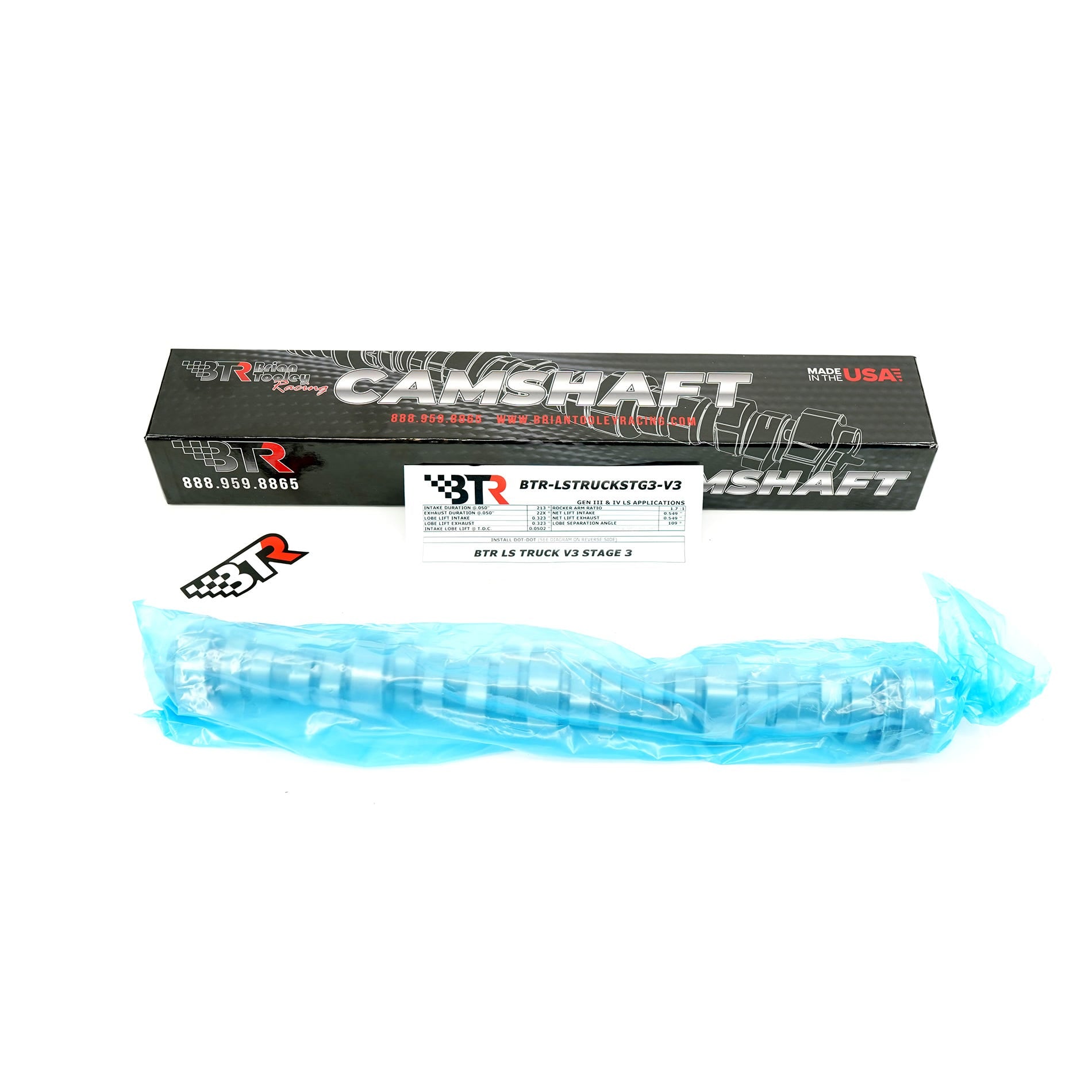

BTR SKU: BTR-LSTRUCKSTG3-V3
Camshaft Description: BTR LS TRUCK V3 STAGE 3
Engine Family: GEN III & IV LS Applications
Recommended Engine Size: 4.8-6.2L
Recommended Valve Springs: BTR-SK018
Recommended Lifters/Lifter Trays: (LS7 Lifters) X12499225, (Trays) BTR95365-4
Suggested Pushrod Length: 7.400"
INTAKE DURATION @.050": 213°
EXHAUST DURATION @.050": 22X°
LOBE LIFT INTAKE: 0.323"
LOBE LIFT EXHAUST: 0.323"
INTAKE LOBE LIFT @ T.D.C.: 0.0502"
ROCKER ARM RATIO: 1.7:1
NET LIFT INTAKE: 0.549"
NET LIFT EXHAUST: 0.549"
LOBE SEPARATION ANGLE: 109°
EXPECTED IDLE VAC 750RPM: 42 (kpa)
RPM Operating Range: 1900-6400
Idle Quality: Great lope similar to Truck Norris
Chop Scale: 6/10
Expected Cam Swap Gains (P2P): 64HP 27FTLBS
Torque Converter Characteristics: OE Compatible with Proper Tuning, Aftermarket Converter recommended for best performance. Tested in-house 2004 stock 4L60e converter!
'Drivability': Near OE Torque Below 2500 with much broader powerband; great for a HOT Daily Driver
Engineering Says: This is engineering's top pick for best all-around truck cam!
__________

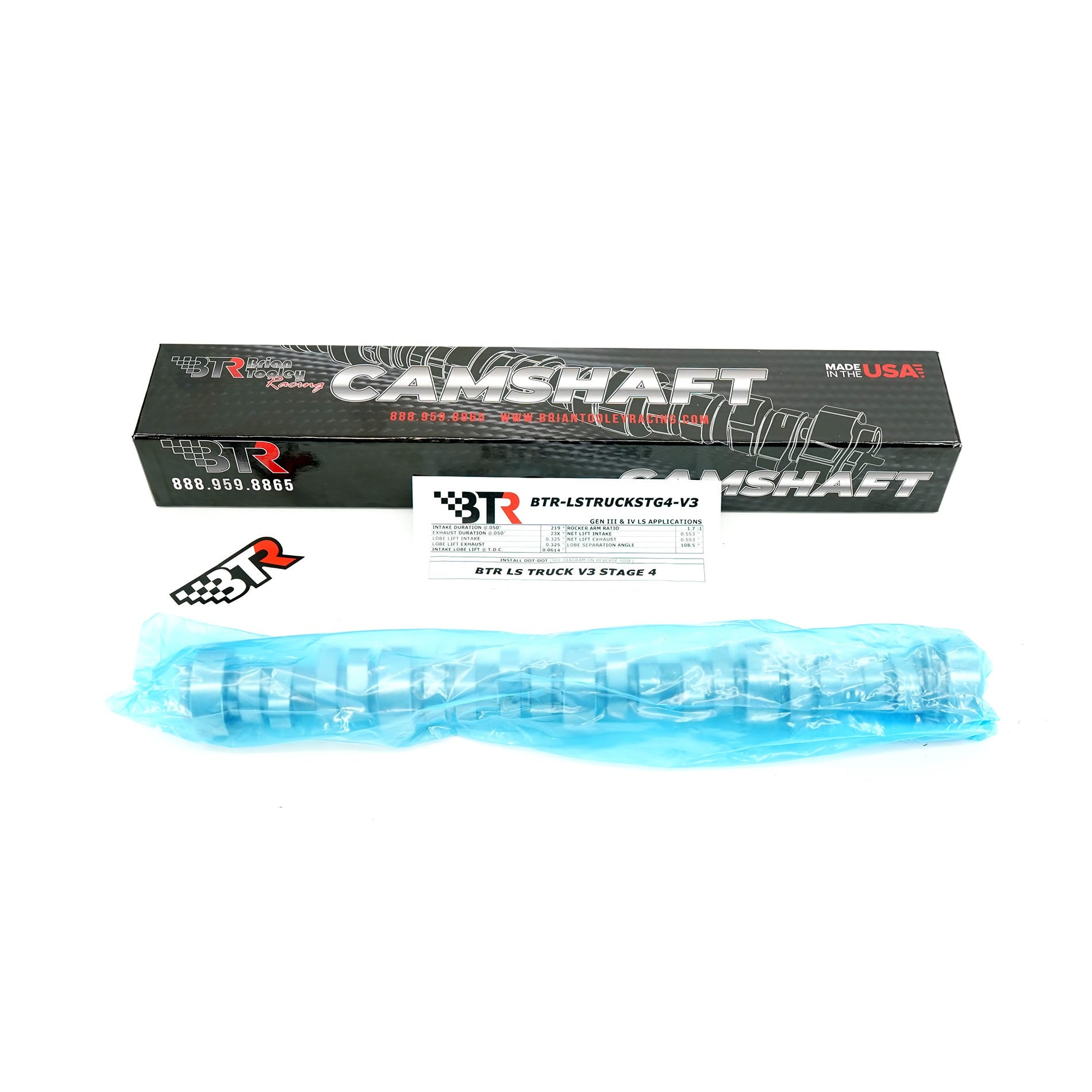

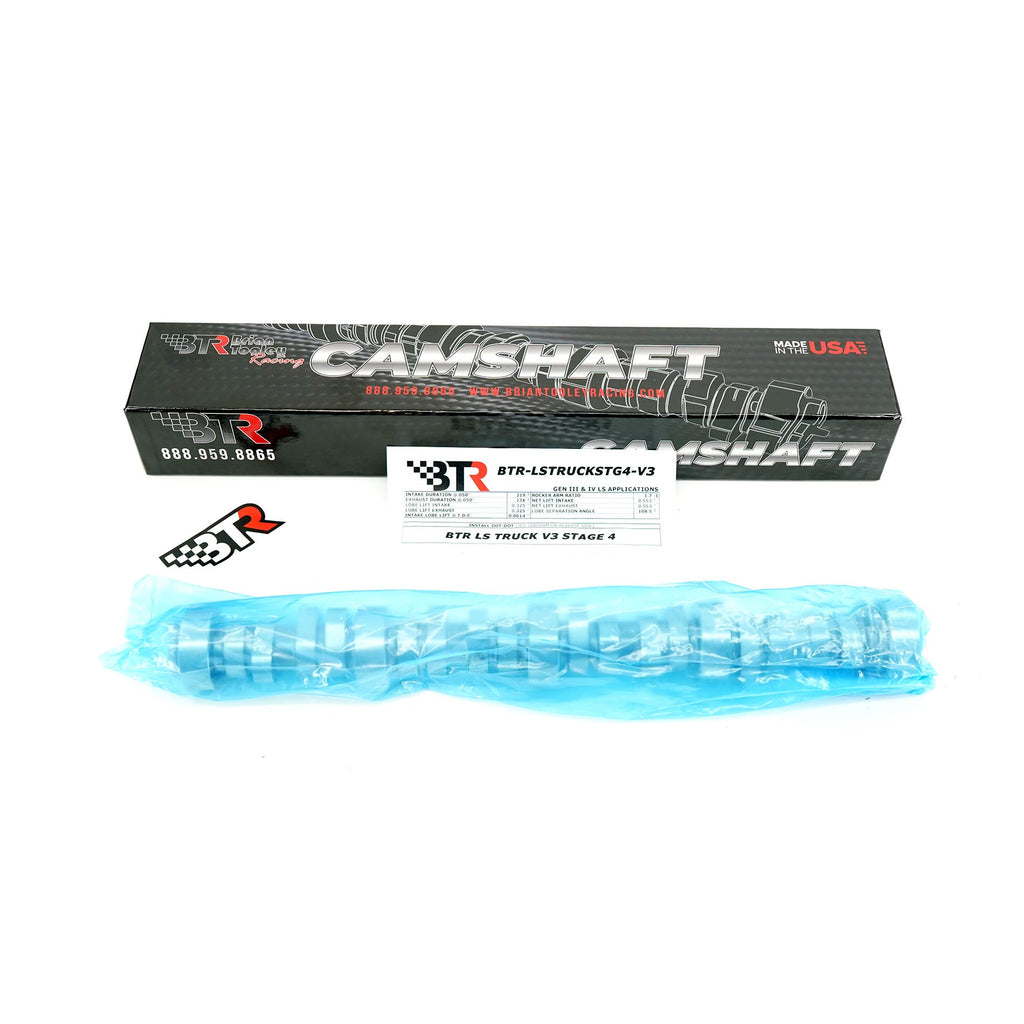

BTR SKU: BTR-LSTRUCKSTG4-V3
Camshaft Description: BTR LS TRUCK V3 STAGE 4
Engine Family: GEN III & IV LS Applications
Recommended Engine Size: 4.8-6.2L
Recommended Valve Springs: BTR-SK018
Recommended Lifters/Lifter Trays: (LS7 Lifters) X12499225, (Trays) BTR95365-4
Suggested Pushrod Length: 7.400"
INTAKE DURATION @.050": 219°
EXHAUST DURATION @.050": 23X°
LOBE LIFT INTAKE: 0.325"
LOBE LIFT EXHAUST: 0.325"
INTAKE LOBE LIFT @ T.D.C.: 0.0614"
ROCKER ARM RATIO: 1.7:1
NET LIFT INTAKE: 0.553"
NET LIFT EXHAUST: 0.553"
LOBE SEPARATION ANGLE: 108.5°
EXPECTED IDLE VAC 750RPM: 56 (kpa)
RPM Operating Range: 2200-6700
Idle Quality: Very Aggressive
Chop Scale: 8/10
Expected Cam Swap Gains (P2P): 72+ Horsepower, 24+ lb/ft, an extra 1000+rpm!
Torque Converter Characteristics: We recommend the use of an aftermarket converter for best performance.
'Drivability': Great for shenanigans, lighter trucks that primarily cruise and play instead of work.
