The LSXHR™ 103mm Intake Manifold for LS3 Rectangular Port Applications features:

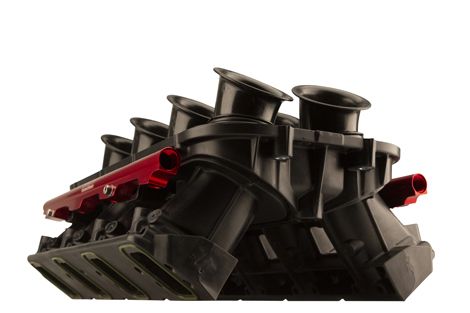

- Standard "tall" stacks are interchangeable with separately purchased "medium" and "short" stacks to find the most powerful combination
- Polymer construction is lightweight and high strength to eliminate power-robbing heat soak commonly found in aluminum intake manifolds
- Average 30 HP gain between 5,000 and 7,500 RPM over competitors' high ram intake manifolds
- Rated for up to 45psi of continuous pressure
- Compound fuel injector angle aims spray pattern for ideal atomization, resulting in maximum power production and superior drivability
- Reversible top allows for forward- or firewall-facing throttle body installations
- Two nitrous nozzle bosses per runner for clean and easy direct port system installations
- 103mm Throttle body opening can be ported to 105mm
LSXHR 103mm Intake Manifold - LS3 Rectangular Port
FAST has developed the industry's first polymer tunnel ram-style intake manifold, ideal for generating maximum power in boosted and naturally aspirated engines.
The FAST LSXHR 103mm Intake Manifold ships with a set of "tall" removable velocity stacks, however "medium" and "short" stack options can be purchased separately. This allows interchanging of the various runner lengths so racers can experiment with finding which combination makes the most power in their application. Its polymer construction is not only lightweight and high strength but also virtually eliminates power-robbing heat soak that occurs with commonly available aluminum intake manifolds. Testing has shown an average 30-horsepower gain between 5,000 and 7,500 RPM over competitor tunnel ram intake manifolds.
The FAST LSXHR 103mm Intake Manifold is designed specifically with boosted applications in mind and is rated for up to 45psi of continuous pressure. The compound fuel injector angle aims the spray pattern for ideal atomization, resulting in maximum power production and superior drivability.
A reversible top allows for forward- or firewall-facing throttle body installations. The intake manifold also features two nitrous nozzle bosses per runner for clean and easy direct port system installations. Its 103mm throttle body opening can be port matched to 105mm.
