FAST 146602B LSXRT 102MM TRUCK INTAKE MANIFOLD GM 4.8L 5.3L 6.0L
Injection Molded Polymer Intake
Cathedral-Port Head Equipped Applications

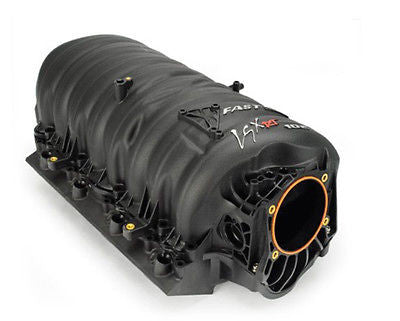

Designed specifically for GM 4.8/5.3/6.0L cathedral port cylinder head-equipped truck engines and cathedral port LS1, -2, -6 applications where hood clearance is not a concern, the FAST™ LSXRT™102mm Intake Manifold follows the path chartered by the original FAST ™ LSX™ Gen III Intake by featuring a modular design that allows for easy porting and disassembly and a runner design that yields an incredible 25 peak horsepower gain over the stock intake, on a stock 6.0L engine with a Big Mouth 102mm Throttle Body™. Extensive testing led to a runner design that is longer and less restrictive and gives the user the ability to remove individual runners from the manifold for modification.
The LSXRT™ is constructed from a proprietary precision injection molded polymer which offers many benefits, including lighter weight, greater strength and lower heat soak propensity. While it features a 102mm air inlet that was designed for the FAST™ Big Mouth 102mm Throttle Body™, it can also be used with OEM electronic 78/90mm or aftermarket 90/92mm throttle bodies (three-bolt electronic throttle bodies require an adapter). Other features include integrated nitrous bungs and a precise bolt-on fit that permits the use of factory accessories and OEM fuel/emission connections without adjustments or clearance issues.
25 HP gain when used w/ 102mm Big Mouth Throttle Body™ on a stock 6.0L truck engine
Constructed from proprietary precision injection molded polymer; Lighter than aluminum w/ lower heat soak propensity & greater strength over stock molded intake
Innovative multi-layer design w/ removable runners for quick & easy disassembly & porting
Integrated nitrous bungs; plug-and-play w/ ZEX™ LSX™ Direct Port Nitrous System
Patented Design - U.S. Patent No 8,567,366
|50-State Legal CARB EO #D-279-9||Throttle Body / Fuel Rail Type|
|‘99-‘02 Silverado/Sierra 4.8/5.3/6.0L||3-Bolt, Cable Throttle Body / Round Plastic Fuel Rails|
|‘02-‘06 Silverado/Sierra 4.8/5.3/6.0L||3-Bolt, Electronic Throttle Body / Round Plastic Fuel Rails|
|‘07 Silverado/Sierra (“Classic”) 4.8/5.3/6.0L||3-Bolt, Eletronic Throttle Body / Round Plastic Fuel Rails|
|’07-‘13 Silverado/Sierra 4.8/5.3L||4-Bolt, Eletronic Throttle Body / Square Metal Fuel Rails|
|’00-’02 Tahoe/Yukon/Suburban 4.8/5.3/6.0L||3-Bolt, Cable Throttle Body / Round Plastic Fuel Rails|
|’02-’06 Tahoe/Yukon/Suburban 4.8/5.3/6.0L||3-Bolt, Electronic Throttle Body / Round Plastic Fuel Rails|
|’06-’09 Trailblazer SS1 LS2 (6.0L)||4-Bolt, Electronic Throttle Body / Square Metal Fuel Rails|
|’07-’14 Tahoe/Yukon/Suburban 4.8/5.3/6.0L||4-Bolt, Electronic Throttle Body / Square Metal Fuel Rails|
|*Drive-by-wire = Electronic Throttle Body / Drive-by-cable = Mechanical/Cable Throttle Body|
APPLICABLE THROTTLE BODIES
APPLICABLE FUEL RAILS
1. Chevy Trailblazer SS requires some cowl modifications.
2. FAST™ throttle body requires GM purge solenoid #12581282 (Not sold by FAST™)
3. Drive-by-wire applications must re-use OEM throttle body or purchase aftermarket drive-by-wire throttle body.
4. Fuel line adaptor(s) required to connect to OEM fuel line(s).
