Name: Edelbrock 28457 Victor Jr Intake Manifold Carburetor for Chevy Gen IV LS3/L92/L76
Brand: Edelbrock
SKU: EDE28457
Price: 476.95 USD
Availability: OutOfStock

Edelbrock 28457 Victor Jr Intake Manifold Carburetor for Chevy Gen IV LS3/L92/L76

Roll over image to zoom in Click on image to zoom

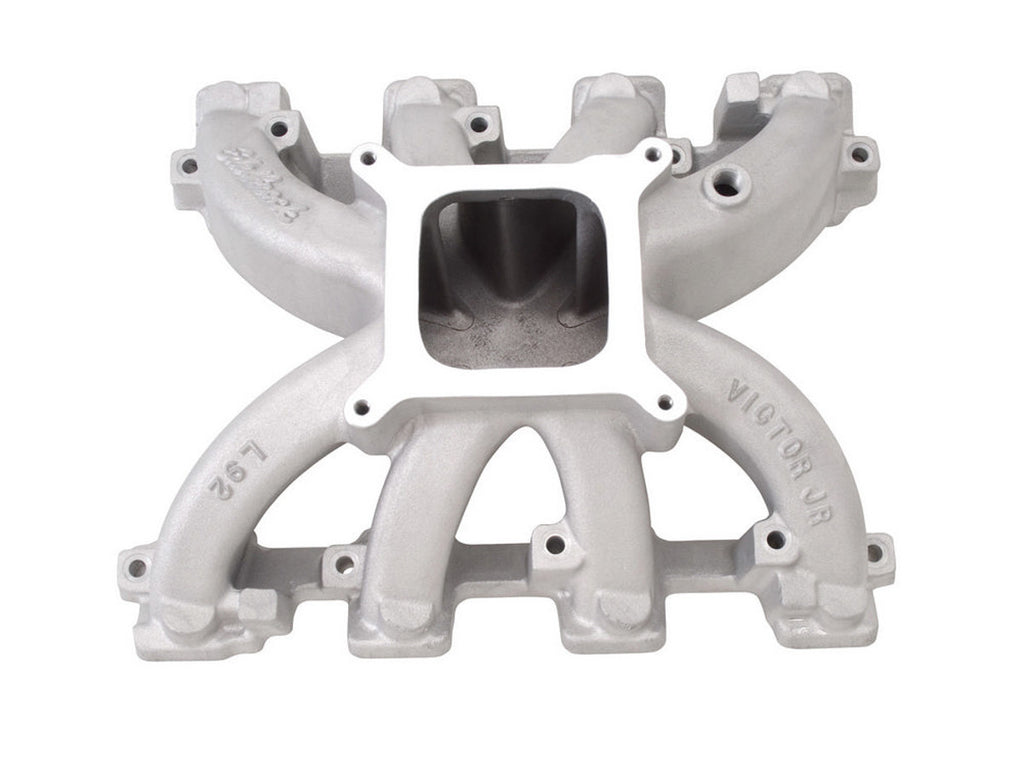

GM LS Victor Jr. Intake Manifold - 4150 Flange
Intake Manifold - Victor JR. L76 / L92 / LS3 - Square Bore - Single Plane - Aluminum - Natural - GM LS-Series

UPC	085347284573
Series	Victor
Material	Aluminum
Finish	Satin
Gasket Or Seal Included	No
Vehicle Model	Chevrolet
Availability Note	Available to Order
Warranty	12 Months
RPM Range	3500-7500 RPM
Emissions Code
Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Uses LS3/L76/L92 style individual port O-ring seals GM PN19256623; 4150 Carb flange; Throttle body recommendations: Edelbrock #38783; L92 heads are intended for 4.00" bores and will not work with 5.7L blocks without valve reliefs; Manifold Dimensions: Roof to bolt centerline-1.85", Floor to bolt centerline -0.57", Hieght-2.42", Carb pad height 7.40"
Rear Maximum Height	7.400 in
Single Or Dual Plane Type	Single
