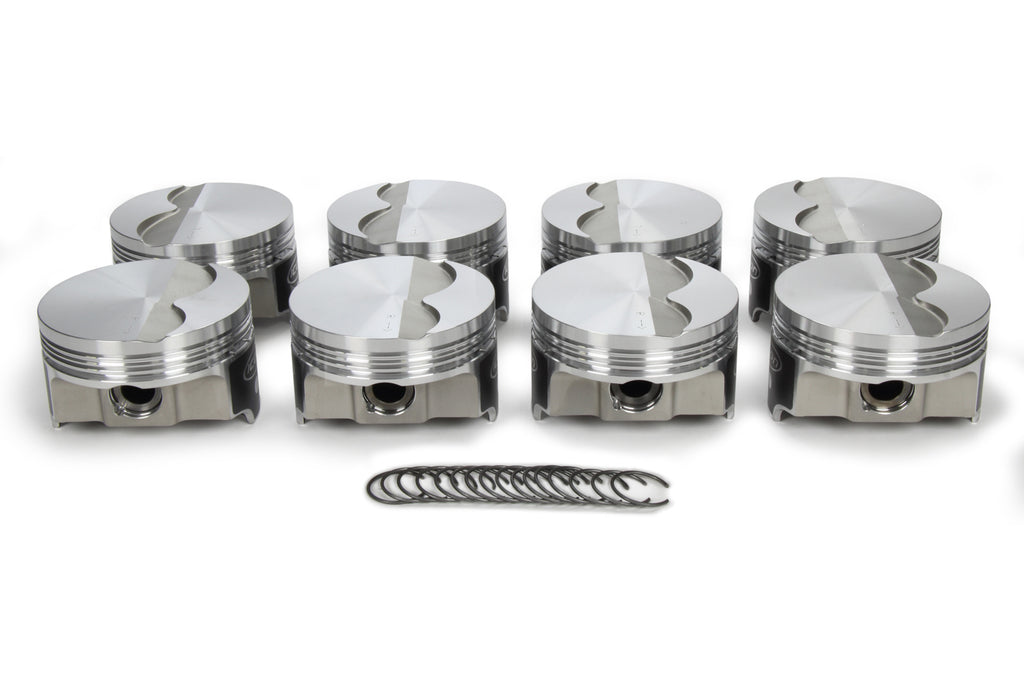

LS 5.3L FT Forged Piston Set 3.800 Bore
Upgrade your engine with the ICON PISTONS LS 5.3L FT Forged Piston Set, designed for performance and longevity. This set includes eight high-quality forged pistons tailored for GM LS-Series engines, ensuring optimal performance in high-stress conditions. Featuring a bore size of 3.800 inches and a ring groove configuration of 1.5 x 1.5 x 3.0 mm, these pistons are crafted to enhance your engine's efficiency and power output.
Features:
* Bore Size: 3.800 inches for enhanced performance
* Ring Groove: 1.5 x 1.5 x 3.0 mm for improved sealing and efficiency
* Engine Compatibility: Specifically designed for GM LS-Series engines
* Piston Type: Forged construction for superior strength and durability
* Volume: Minus 2.90 cc for optimized compression ratios
* Set Includes: Eight pistons to complete your engine build
Bore (in.):3.800 in.
Stroke:3.622 in.
Engine Stroke Type:Stock
Rod Length:6.098 in.
Piston Style:Flat top, with two valve reliefs
Piston Material:Forged aluminum
Compression Height (in.):1.331 in.
Piston Head Volume (cc):+2.90cc
Wrist Pin Style:Press-fit or floating
Wrist Pin Retainers Included:Yes
Wrist Pin Included:Yes
Pin Diameter (in.):0.945 in.
Piston Ring Thickness:1.50mm x 1.50mm x 3.00mm
