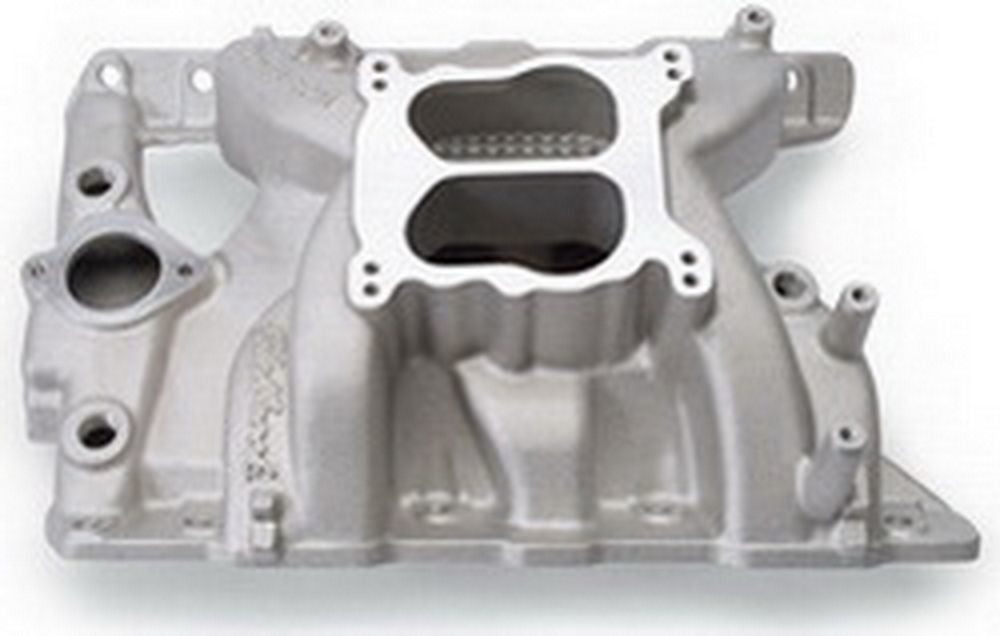

Edelbrock part #7156 Performer RPM Pontiac intake manifold is designed for 1965-79 street 326-455 c.i.d. Pontiac V8's (except Ram Air V and 265/301 V8's). Recommended for high-performance street, strip and marine. Has clearance for HEI distributor. Will not fit under Trans Am Shaker hood without modifications
| UPC |
085347071562 |
| Series |
Performer RPM |
| Material |
Aluminum |
| Finish |
Satin |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Pontiac |
| Availability Note |
Available to Order |
| Warranty |
12 Months |
| RPM Range |
1500-6500 RPM |
| Emissions Code |
|
| Hazardous Materials Warning |
 WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Installation Notes |
- Recommended intake gasket: Edelbrock #7280; No provisions for OEM choke; OEM carb requires conversion to electric/manual choke; Carb recommendations: Edelbrock Thunder Series AVS, AVS2 or Performer Series 650-800 cfm.; For 1968-71 use Edelbrock #8015 throttle bracket; Manifold height: 1-1/4" taller than stock, A-6.88", B-8.00" measured to engine block; Carb pad height: 7.45"; Port exit dimensions: 1.10" x 2.06"; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
|
| Rear Maximum Height |
8.000 in |
| Single Or Dual Plane Type |
Dual |
